ADJUSTABLE TELESCOPIC PROPS SYSTEMS UPPER HEADS

Product Code: ADJUSTABLE TELESCOPIC PROPS
Stock Status:Yok
retimde

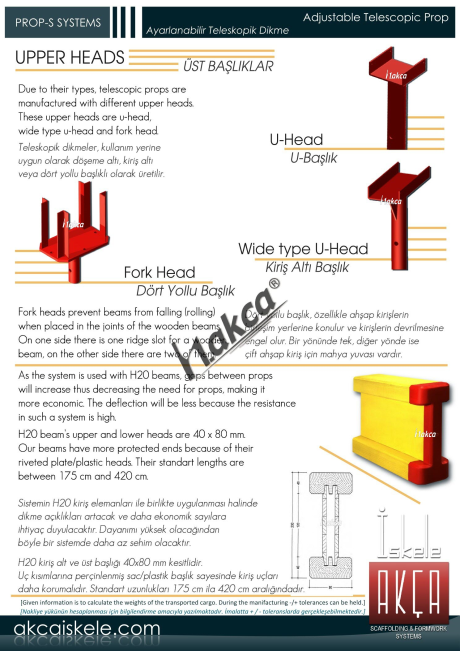

Due to their types, telescopic props are manufactured with different upper heads. These upper heads are u-head,wide type u-head and fork head. As the system is used with H20 beams, gaps between propswill increase thus decreasing the need for props, making it more economic. The deflection will be less because the resistance in such a system is high.

ISO 9001: 2008 Quality Management System is applicable. TSE certified and Sertfikal of our production Steel / Tube is used.

Technical Specifications Product Our company can make the necessary changes in the conditions he saw. First Quality Control Officer of the final product is made by our company.

Products can be sent from our factory unless otherwise specified in the Contract Area. Transportation / Shipping Customer Support Organization is to Become.

Cost of materials as Accompaniment bank transfer to our account.

Please call your sales representative for further information.

Note :

* As the system is used with H20 beams, gaps between props
will increase thus decreasing the need for props, making it
more economic. The deflection will be less because the resistance
in such a system is high.

* H20 beam’s upper and lower heads are 40 x 80 mm.
Our beams have more protected ends because of their
riveted plate/plastic heads. Their standart lengths are
between 175 cm and 420 cm.

* Fork Head : Fork heads prevent beams from falling (rolling)
when placed in the joints of the wooden beams.
On one side there is one ridge slot for a wooden
beam, on the other side there are two of them.
